Yamaha Montage M8X Synthesizer
-
-
-
-
-
-
-
Playing videos requires marketing & advertising cookies. By pressing Play, you consent to their use, which will override previously rejected settings. To update your preferences, see our cookie policy.
This product is currently unavailable for delivery to your country
Key Features
- Offers polyphonic aftertouch for expressive note control
- Delivers authentic vintage tone with new AN-X synth engine
- Provides 400-note polyphony for complex layering
- Includes Expanded Softsynth Plugin for DAW integration
- Claim your 5-year Yamaha extended warranty

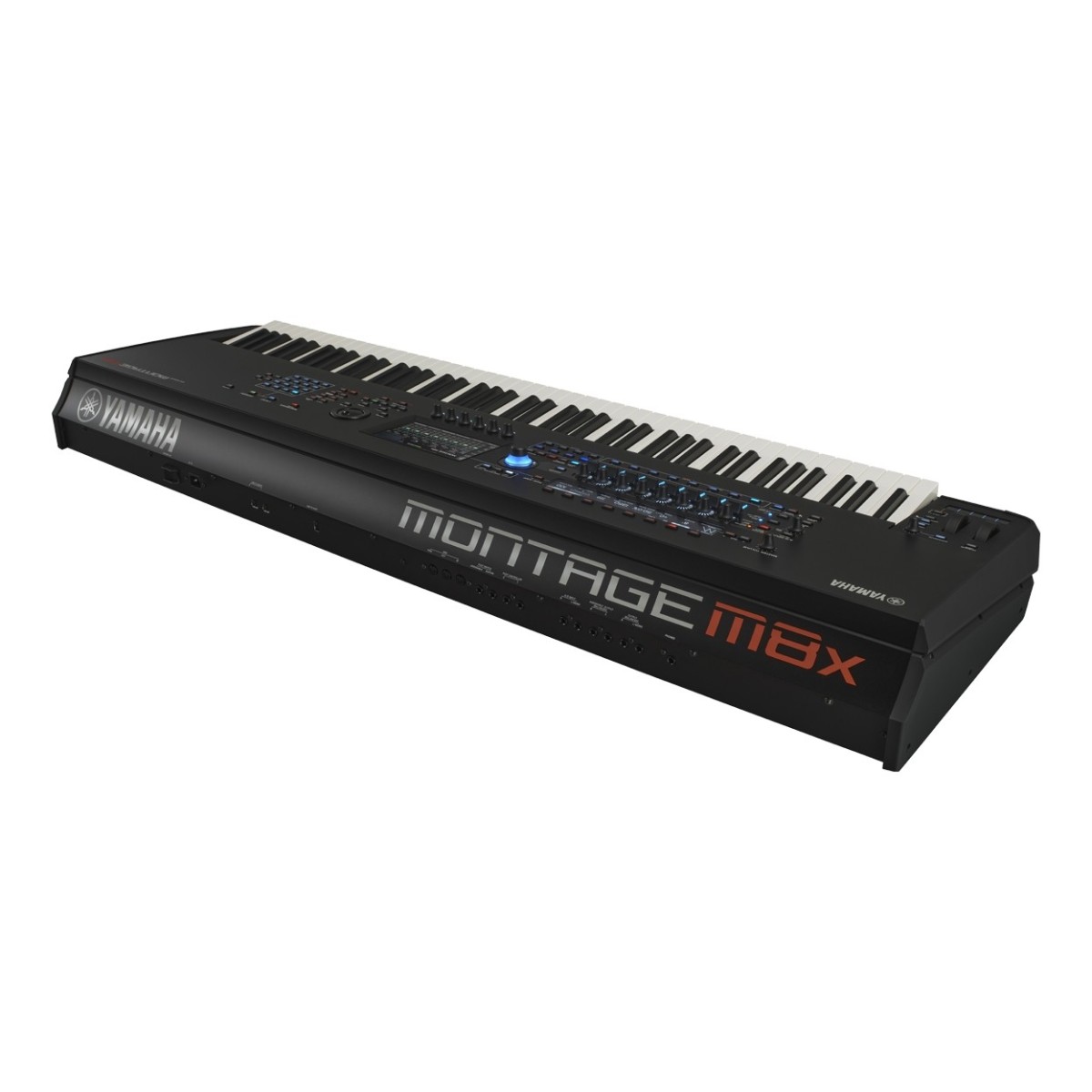

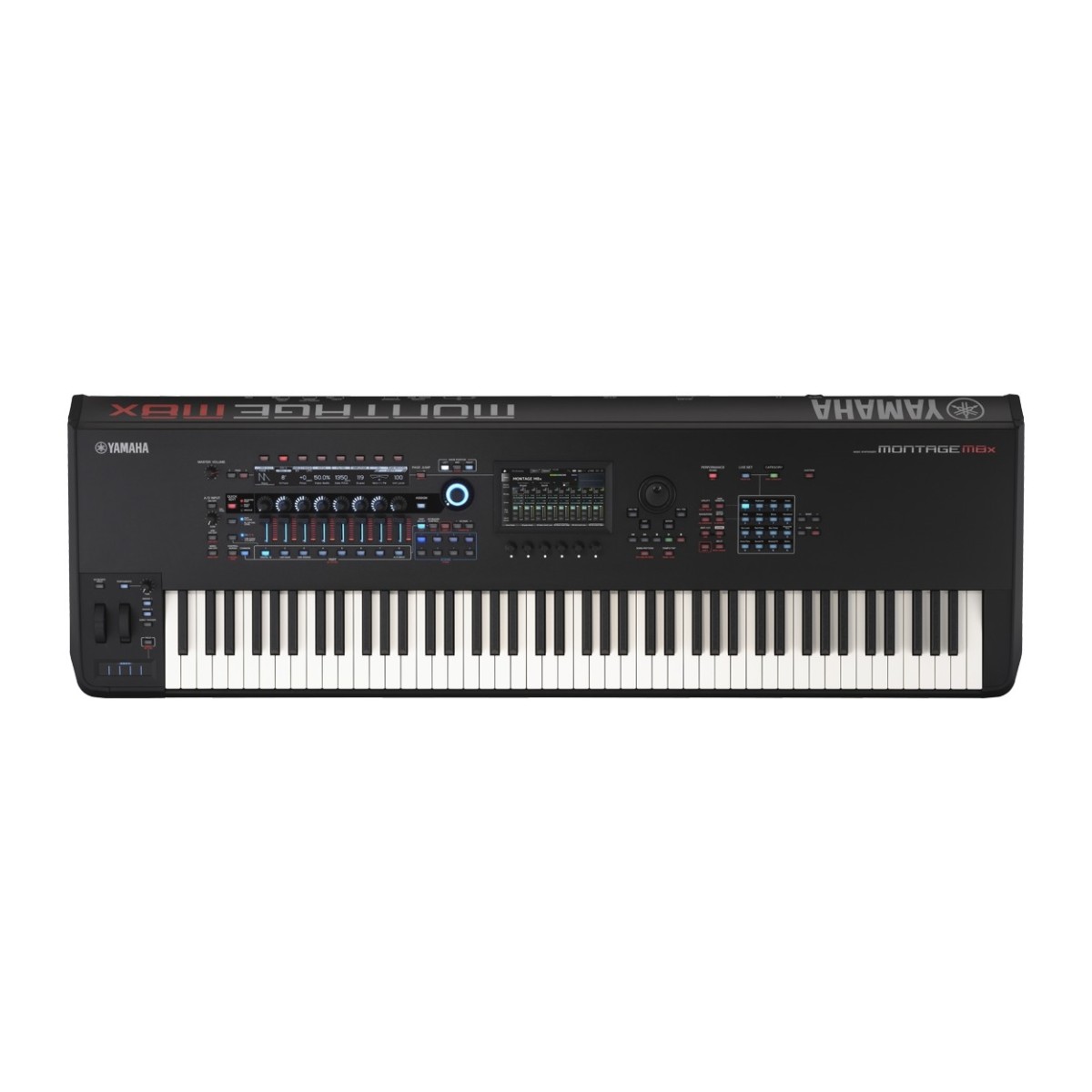

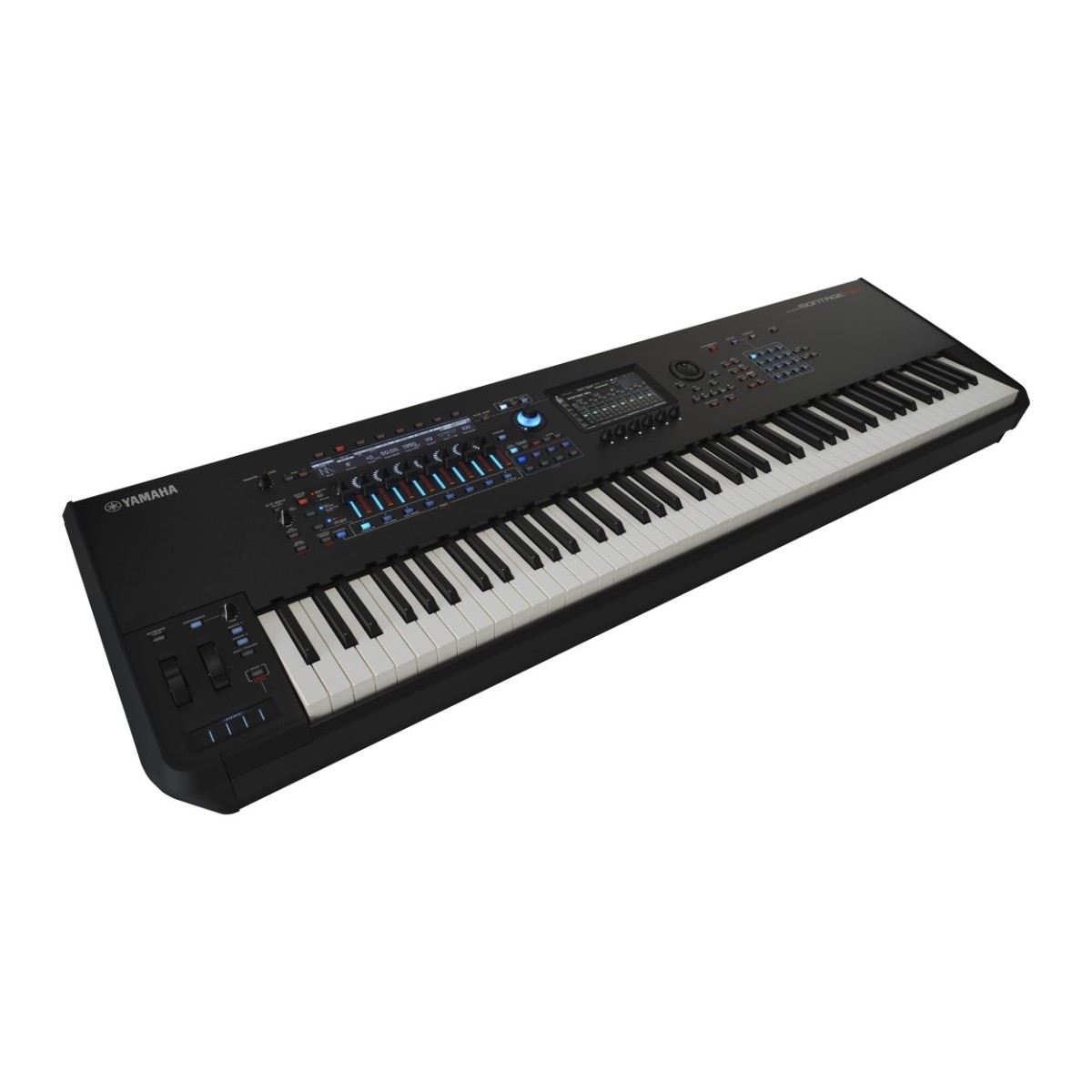

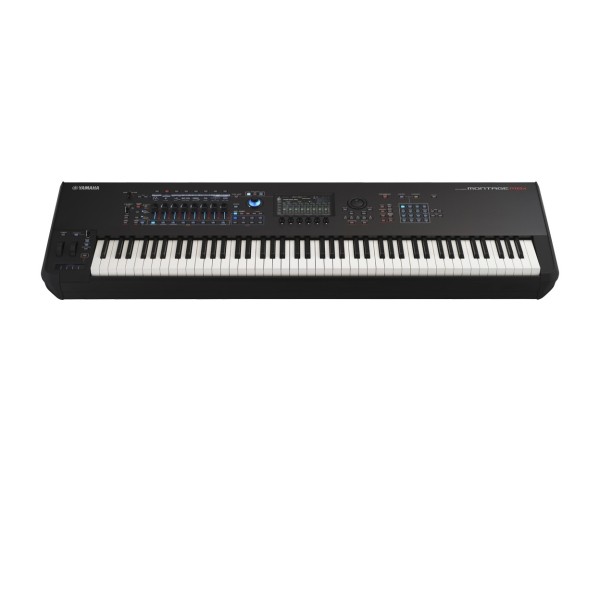

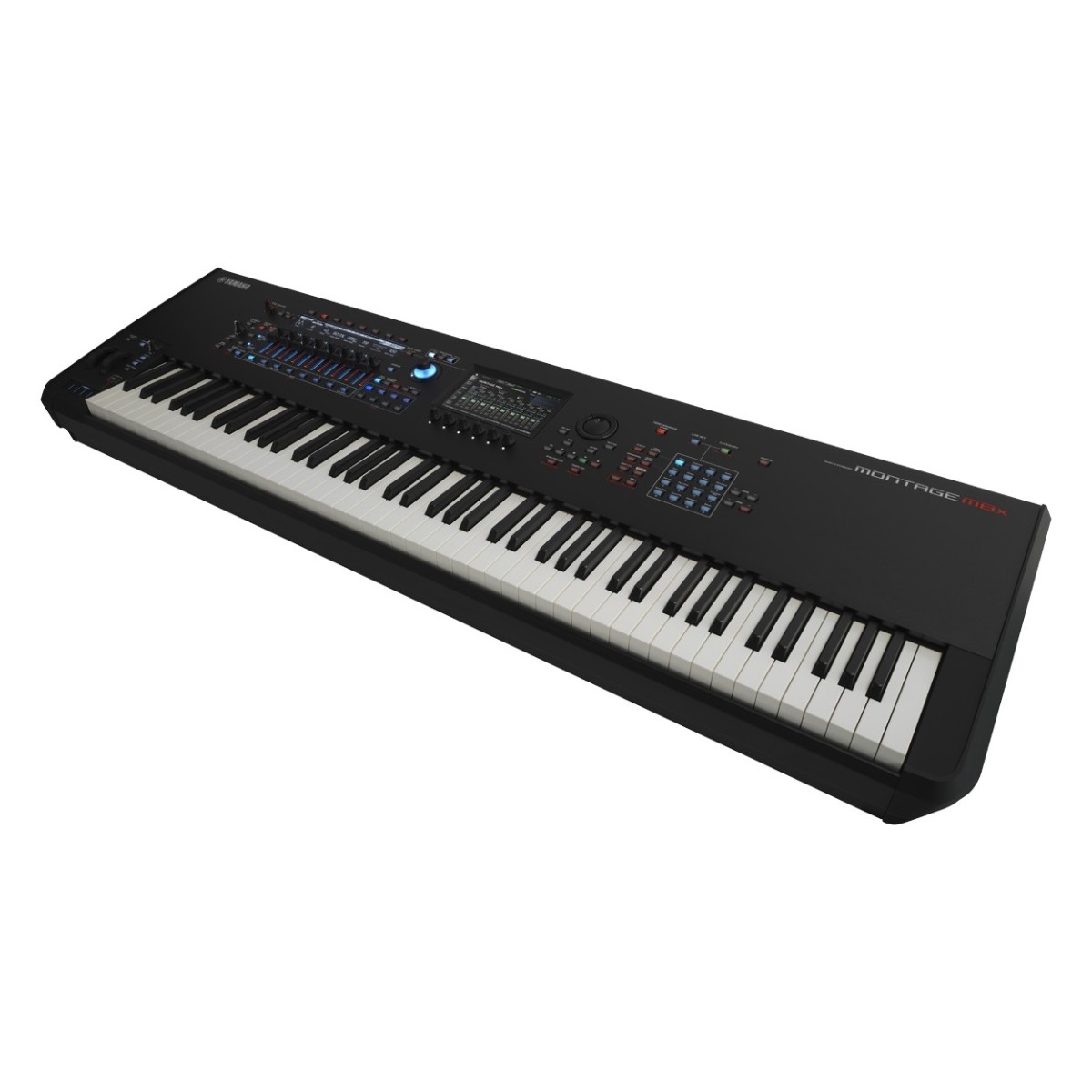

Yamaha Montage M8X Synthesizer Overview
The Yamaha Montage M8X is built for advanced players who need powerful control in the studio and expressive playability on stage. Featuring 88-key GEX action and polyphonic aftertouch, it delivers detailed dynamics and modulation per note. The triple-engine setup (AWM2, FM-X, and AN-X) gives you access to everything from classic analogue warmth to ultra-realistic acoustic instruments and edgy FM textures. Its 400-note polyphony means you can build rich, layered Performances without dropouts. Integrated computer connectivity, high-res editing controls, and DAW plugin support streamline studio workflow, letting you focus on creating.
The new performance tools, including ribbon controller, portamento controls, and dedicated scene switching makes it easier to adapt on the fly in live setups. Whether you're designing sounds, gigging, or composing, the Montage M8X supports deep creativity with intuitive control.
Product Ref: 348852
Full Description
View Full DescriptionOfficial Yamaha Agent
Gear4music are proud to be an official Yamaha agent, selected as one of a limited number of authorised dealers. This means you're getting a genuine Yamaha flagship product supplied by Gear4music, complete with full manufacturer backing and support.
Expressive play with polyphonic aftertouch
The M8X features Yamaha’s GEX action, offering a weighted 88-key feel with polyphonic aftertouch, something rarely found in modern hardware synths. This allows you to press harder on individual keys to trigger unique modulations, adding a new level of expressiveness. Whether you're shaping synth filters, modulating pitch or adding vibrato, each note responds independently to touch pressure, giving you detailed control. It’s especially powerful for pads, leads and expressive acoustic simulations.
Three sound engines with broad creative range
Inside the M8X are three independent engines: AWM2 for detailed acoustic and sample-based sounds, FM-X for dynamic eight-operator FM synthesis, and the new AN-X for true analogue-style subtractive synthesis. Together they cover a vast sonic range, from lush pianos and strings to raw synth textures and rhythmic motion sequences. Use them individually or layer across multiple parts for a truly customised Performance.
Studio integration with Expanded Softsynth Plugin
The Expanded Softsynth Plugin (ESP) replicates your M8X as a virtual instrument in your DAW. It lets you edit, arrange and mix sounds on your computer without the hardware. This means you can start ideas on the synth, tweak them on the go in your DAW and bring it all together without conversion or compromise. The USB audio interface (32 out / 6 in) and DAW remote controls make this a central tool in both production and performance workflows.
High-resolution control with touchscreen editing

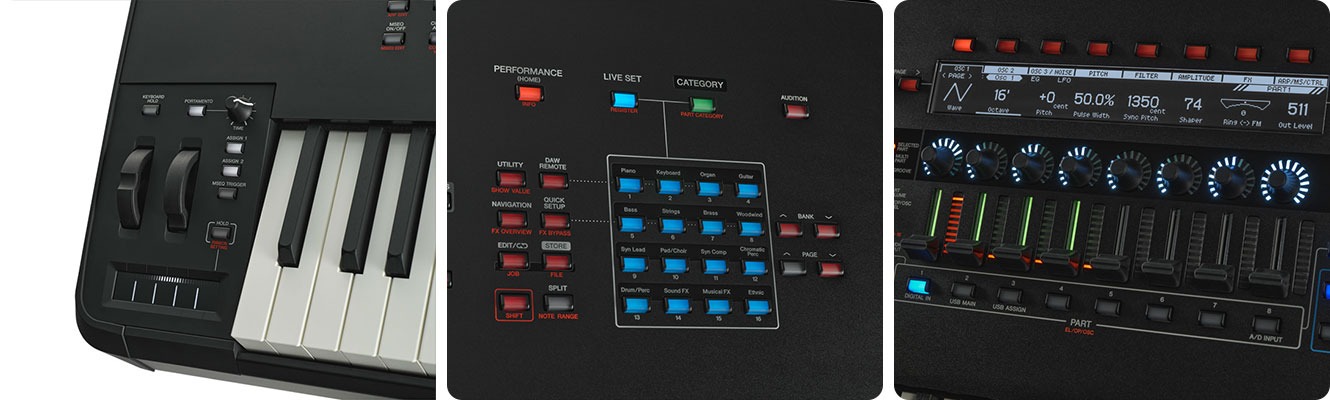

Every physical control, from knobs and sliders to the Super Knob and touchscreens, works in high resolution. This gives you precise, analogue-like behaviour when shaping sounds. The 7” TFT touchscreen works with 6 display knobs and a new Navigation button for fast, deep editing. You also get dedicated controls for Parts, Scenes and keyboard functions, making live performance and sound shaping more efficient and responsive.
Specifications
Control Interface
- Number of Keys: 88
- Keyboard Type: GEX
- Initial Touch: Yes
- Aftertouch: Yes(Polyphonic Aftertouch)
Tone Generator
- Tone Generator: Motion Control Synthesis Engine AMW2
- Elements: 128 max.
- Frequency Modulation: 8 Operator FM-X
- Oscillators: 3
- Noise: 1
- Polyphony: AWM2 (256), FM-X (128), AN-X (16)
- Multi Timbral Capacity: 16 Parts
- Wave: Preset 11.29 GB, User 3.7 GB
- Performance: 3,487
- Filter: 18 types
Performance Recorder
- Note Capacity: 1 Song/Pattern = Approx 130,000 notes, Store Area = Approx 520,000 notes (Pattern)/520,0000 (Song)
- Note Resolution: 480 ppq
- Tempo: 5 - 300 bpm
- Sequence Formats: MONTAGE original, SMF formats 0,1
- Arpeggio: 8 Parts simultaneous, Prest 10,922 tyes or more, User 256 types
Sequencer
- Patterns: 128
- Sequence Tracks: 16
- Pattern Recording Type: Real time replace, Real time overdub
- Songs: 128
- Song Tracks: 16 Sequence tracks, Tempo track, Scene track
Controls
- Controllers: Super Knob, 5-Segment Ribbon Controller With Hold, Portamento On/Off And Time Knob, Keyboard Hold
- Motion Control: Motion Sequences, Super Knob, Envelope Follower
- High-Resolution Control: Enhanced Resolution For Smooth, Analog-Like Operation
- VCM Rotary Speaker: Classic Rotary Speaker Emulation With Vintage Drawbar Behavior
- Extra Features: Voltage Drift, Aging Simulation, Pure Analog Circuit 2 (Improved Clarity And Dynamic Range)

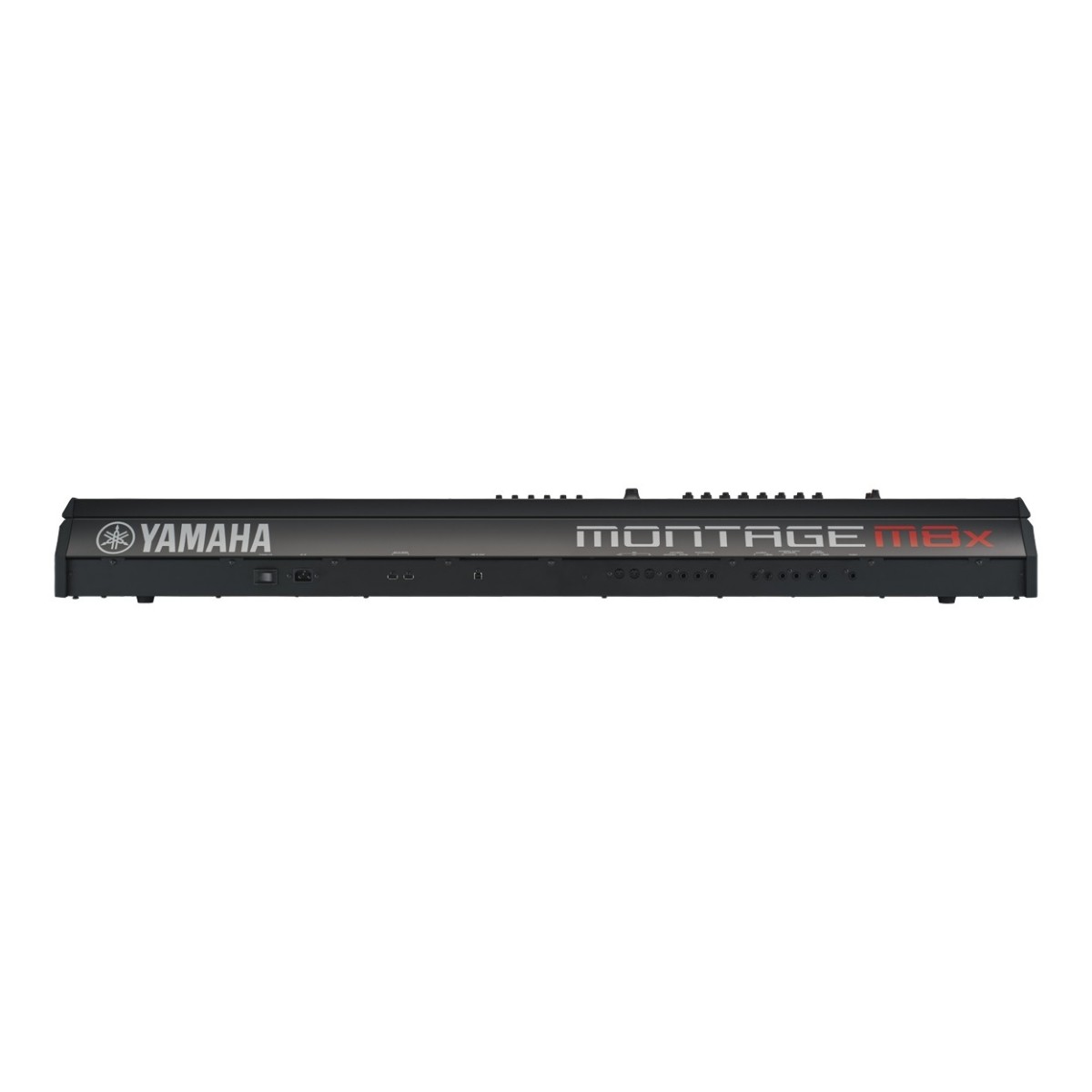

Connectivity & DAW Integration
- Connectivity: USB MIDI + 32 Output / 6 Input Multichannel Audio Interface
- DAW Integration: Expanded Softsynth Plugin (ESP), Dedicated DAW Remote Button For DAW Control
- USB-To-Device Ports: 2 Ports For Flash Drives And MIDI Controllers
Display & Navigation
- Display: 7" TFT Color Touchscreen With 6 Touch Knobs And 512×64 LCD Sub-Display
- Navigation: Page Jump, FX Overview, Category Search, Dedicated Navigation Button
- LED Indicators: Enhanced LED Feedback, Color-Coded Buttons, Red Slider Lamps, Blue Active Part Indicators
- UI Improvements: Faster Interface, Cleaner Visual Design, New Shift Buttons
Dimensions
- Width: 1,446 mm
- Height: 170 mm
- Depth: 460 mm
- Weight: 28.1 kg
General
- Country of Origin: Indonesia
- Power Consumption: 36 W
- Product Code: MONTAGEM8XUK
